This is forklift-connected telescopic boom, used to lift stone slabs easily. It could be adjusted to total 5 scale choices to handle different weight in different situations.
Item NO.:
YT1301Order(MOQ):
1Payment:
TTProduct Origin:
ChinaColor:
Customized colorsShipping Port:
XiamenLead Time：
15-20 days after receiving deposit
Stone Slab Lifter Forklift Telescopic Boom Type Single Slab Lifting Tool for Container Unloading
Stone slab is too heavy to move by single person, which always needs several persons to transport. In some warehouses, they are equiped with the advacned line-lifter to lift slab easily, but there are a lot of warehouses without this device. How can they do? They always refer to forklift for help. However, the forklift has limited length of fork. And sometimes, it can't help much, when unloading the stone slabs container. In this case, it needs forklift-connected telescopic boom to extend its arm, so as to catch each slab from deep container, without hurting each slab. Moreover, in the warehouses, the telescopic boom on the forklift can enable stone slab to avoid hitting the forklift and breaking during moving it. With our stone slab moving tools, you will keep your workers and products safe and obviously improve the working efficiency, which, finally, save your total cost and make more profits. Our proucts are tested by many buyers to be useful and efficient. More importantly, they are not expensive, especially when you have stone containers to leave from China.
Specifications:
|

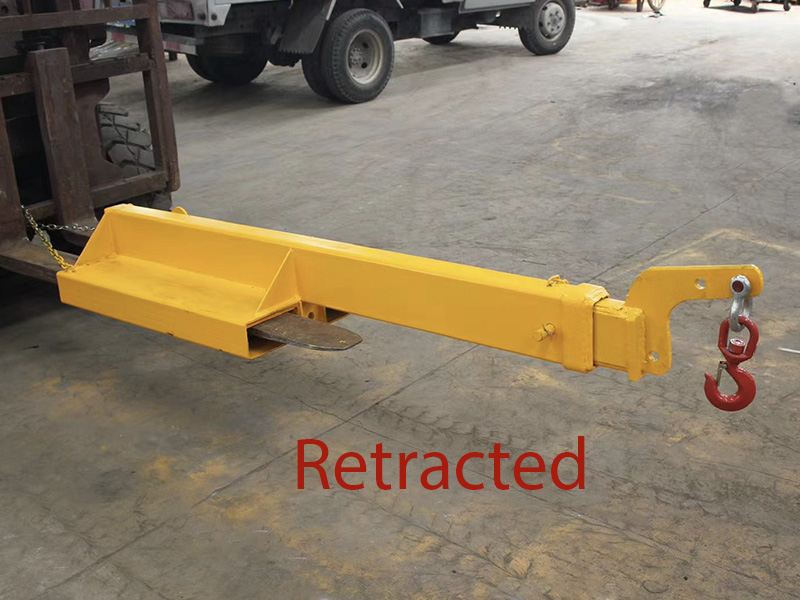

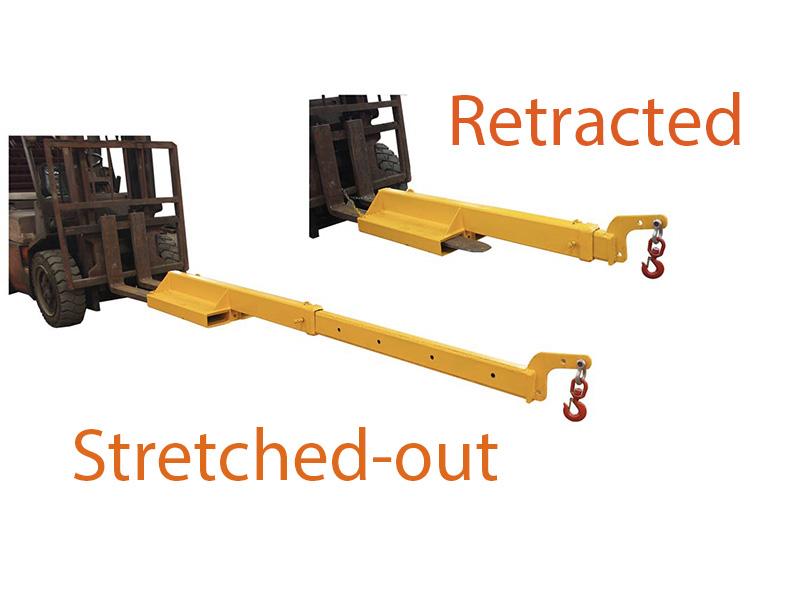

Retracted size |
Stretched-out size |
Angle scale |
Inserting hole size |
Fork car tons |
Package size |
Net weight
|
|
2200*480*300mm |
3400*480*300mm |
0 |
180*80mm |
2t - 10t |
2200*480*300mm |
110 kg |

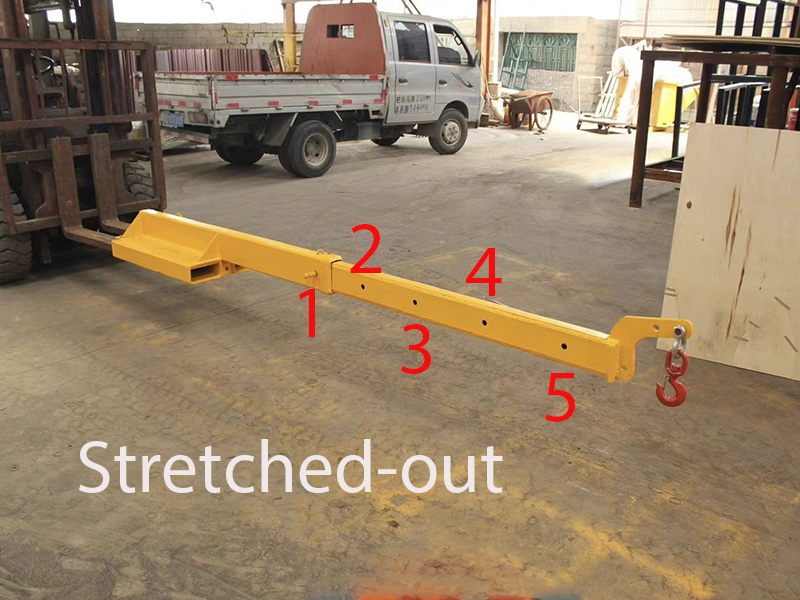

Adjustment scale of length and lifting weight in 5 choices:
|
Choices |
Hole 5 |
Hole 4 |
Hole 3 |
Hole 2 |
Hole 1 |
|
Stretching length |
2200mm |
2500mm |
2800mm |
3100mm |
3400mm |
|
Lifting weight |
1500kg |
1250kg |
1000kg |
750kg |
500kg |
Features:
1. Easy to install in the forklift and use quickly；
2. Customized appearance designs, including color, brand, etc.
3. Flexible adjustment of different length for lifting different weight;
4. Possible to load in the stone slab container without extra shipping cost;
5. Different designs available for your own choices;
Photos:
Stone Board Big Slab Bundle Transport Cart Type Ferry Cart Remote Control Trolley
With this transportation cart or ferry cart, you are able to transport your quartz slabs bundle or granite boards in your warehouse in an easy way. It has remote control functioin to keep some distance from the stone bundles, so as to avoid possible danger.
Unload Quartz Slab Container with Forklift Telescopic Boom Equipment
This forklift telescopic boom is used to unload the container of stone slabs in wooden bundles, which is comparatively safely and fastly than labor work to pull out slabs one by one. In your stone warehouse, you also can use it with the forklift to transport slabs, in 6-file adjustment.
Stone Slab Lifter Tool Big Slab Quartz Clamp Granite Slabs Transportation
Stone slab clamp is useful to move the quartz slab or granite slab easily, safely and more efficiently. No matter on your forklift or line lifter, you need one stone clamp to move your stone slabs.
Glossy Stone Lifter Clamp For Stone Slabs Heavy Slab Lifting Tools
The stone slab lifter clamp is designed to lift and move heavy stone slab at the end of moving machine, which protects the handling person and finish the work efficiently.
Tilting Type Quartz Slab Dolly Countertop Installation Cart Stone Tool
Stone slab is too heavy to move simply by hands. A universal slab moving trolley is useful to transfer slab or countertop during fabrication or instsallation. And the slab dolly is easy to handle for green hand.
Scissor Type Stone Slab Lifting Clamp Granite Slab Lifter Attaching Crane Hook
This scissor type lifting clamp incorporates a latch that could releases the lifter by hand from the loading slab, once the load stone slab has been fully lowered to the ground. It helps transfer stone slabs or other sheet materials to target place in a safe and efficient way.
Forklift Extending Boom To Move Out Heavy Stone Package Granite Slabs
This is a new kind of forklift boom to help unload heavy stone slabs from deep container. It is easy to install on forklift and lift out stone packages without hurting the stone slabs. Its size is just ok to load in 20 ft container.
Steel Frame With Universal Wheels To Transport Stone Countertop Or Panels In Fabrication Workshop
With steel frame and omni-directional wheels on bottom and top, this simple moving cart could transport stone panels or countertops in stone fabrication factory and other necessary places like docks or warehouses. Of couse, some clients also use it to move flat stuff like wood panel or ply-wood materials. If you need customized types, we also could make it for you.
